UMA




PARTITIONS + DOOR MODULES

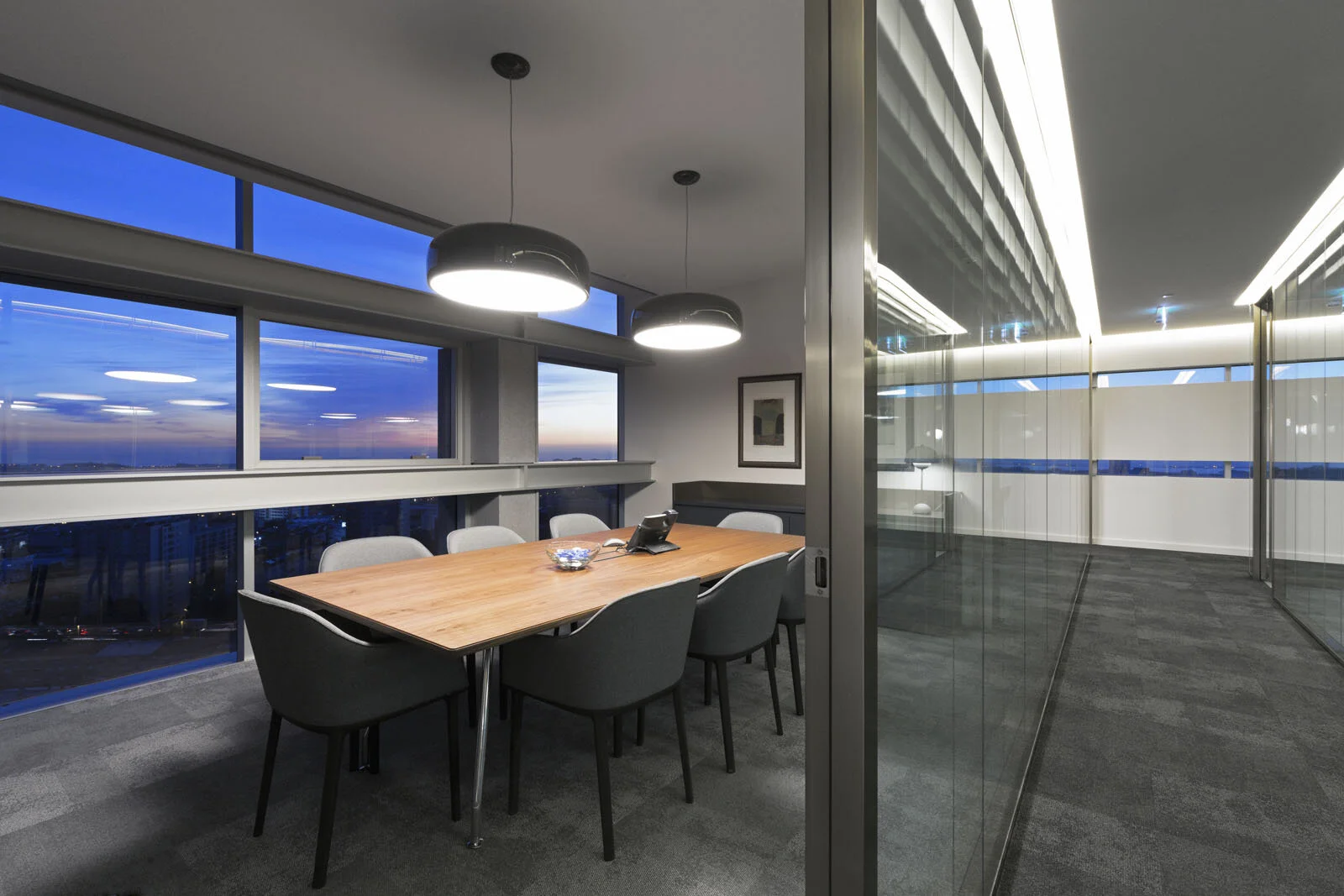

With flexibility to archive effectiveness, privacy without losing aesthetics and transparency to provide confidence, UMA is a partition wall system suitable for any requirement in today’s modern office buildings.

Contact us for more information →




TECHNICAL CHARACTERISTICS

STRUCTURE

  • Inner structure with steel profiles (Modular System) and aluminium (Continuous System)

  • Visible structure with aluminium profiles – 26mm Frame

  • Lower and Superior profiles with 18mm visible gap

  • 12mm Leveling tolerance

GLASS PARTITIONS

  • Continuous System:
    - Single Glass 10 or 12mm
    - Double Glass 10 +10mm, 10+12mm or 12+12mm

  • Modular System:
    - Double Glass 5+5mm

SOLID PARTITIONS

  • 19mm Chipboard Panel

  • Insulation with Mineral Wool 40mm and 70kg/m³

SWING DOORS

  • Aluminium door frame

  • 10/12mm Frameless door leaf with 10/12 mm single glass

  • 42mm Framed door leaf with 6mm Single Glass, 5+5mm Double Glass and 10mm Solid Panel

  • 92mm Framed door leaf with 5+5mm Double Glass and 10mm Solid Panel

SLIDING DOORS

  • Aluminium door frame

  • Inside partition:
    - 10/12mm Frameless door leaf with 10/12 mm single glass

  • Outside partition:
    - 10/12mm Frameless door leaf with 10/12mm single glass
    - 42mm Framed door leaf with 6mm Single Glass, 5+5mm Double Glass and 10mm Solid Panel

DIMENSIONS

  • Partitions and Door Modules with 3000mm maximum height

  • Solid Partition and Framed Glass Partition with 1000/500mm modulated width

  • Frameless Glass Partition with variable width, not exceeding 2.70m²

ASSEMBLY

  • Lower and Top profiles fastened to the existent floor and ceiling

  • Solid Panels and Framed Glass fixed to structural vertical steel columns

  • Frameless Glass Partition fixed with aluminium profiles

  • Glass joints with 3mm aluminium profiles

FINISHES

  • Colorless glass, colored and with vinyl

  • Solid Panels with Melamine, Natural Wood Sheet and Lacquered

ACOUSTICS

  • Solid Partition 48dB

  • Glass Partition 34dB to 44dB

  • Glass Doors 29dB to 36dB

  • Solid Doors 30dB to 33dB
